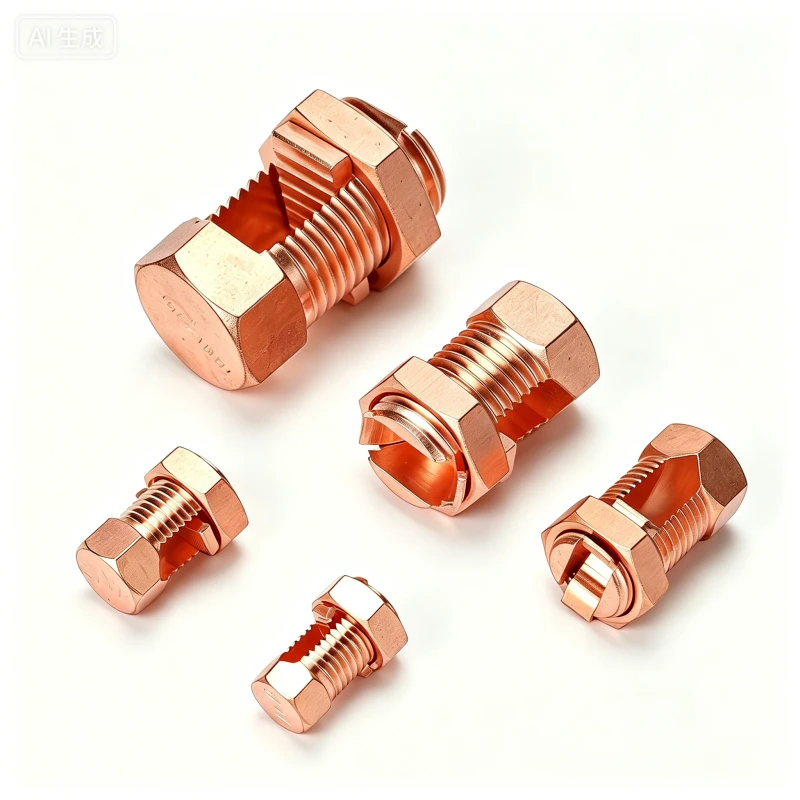

Copper Bolt Clamp

Copper Bolt Clamp, TJ Series Split Bolt Connector, High Conductivity Grounding Clamp for Copper Wire Connection

PDF download Online Inqury

PRODUCT DETAIL

Premium copper bolt clamp (split bolt connector) – high-purity copper body for low-resistance electrical connections. Ideal for copper wire splicing, grounding, and bonding in power systems. Excellent conductivity, corrosion resistance, reusable design. Suitable for substations, industrial wiring, and grounding applications. 12-month warranty, CE/IEC certified.

Key Features

Material: High-purity copper alloy body (Cu≥99.9%), galvanized steel bolts (Grade 8.8), anti-oxidation washers
Conductivity: Ultra-low contact resistance ≤3μΩ, maximum current transfer efficiency
Design: Two-piece split bolt structure, compact and durable, easy to install
Compatibility: Fits solid/stranded copper conductors (Cu-Cu connections only)
Durability: Excellent corrosion & oxidation resistance, service life ≥30 years
Installation: No special tools needed, reusable & inspectable connection
Certification: Compliant with IEC 61284, GB/T 2314, CE certified

Electrical & Mechanical Parameters

Rated Voltage: Up to 35kV
Contact Resistance: ≤3μΩ
Operating Temperature: -40°C to 150°C
Torque Value: 15–30 Nm
Standard: IEC 61284, GB/T 2314

Applications

Copper wire splicing & branching in low/high voltage systems
Substation grounding & busbar connections
Industrial equipment grounding & bonding
Building electrical system copper wire connections
Transformer & switchgear copper cable terminations
Lightning protection & earthing systems

Installation Instructions

Select correct model based on copper conductor size.
Clean conductor surface to remove oxidation/dirt.
Open the split bolt clamp and insert both conductors.
Tighten bolts evenly to recommended torque.
Verify secure connection; add insulating tape if required.

Packaging & Shipping

Packaging: 50/100 pcs per carton, wooden pallet for bulk orders
MOQ: 100 pcs
FOB Port: Ningbo/Shanghai
Delivery Time: 7–15 days after payment
HS Code: 8535900090

Product weight

Model	Length (cm)	Width (cm)	Height (cm)	Volume (cm³)	Weight (g)
T/J-10 sq.	2.50	0.30	1.00	0.750	16
T/J-16 sq.	2.70	0.30	1.20	0.972	21
T/J-25 sq.	2.70	0.30	1.40	1.134	28
T/J-35 sq.	3.50	0.30	1.80	1.890	54
T/J 50-70 sq.	4.20	0.30	2.40	3.024	97
T/J 90-120 sq.	4.50	0.30	2.50	3.375	110
T/J 150-185 sq.	5.50	0.30	3.00	4.950	194
T/J 200-240 sq.	5.70	0.30	3.20	5.472	205
