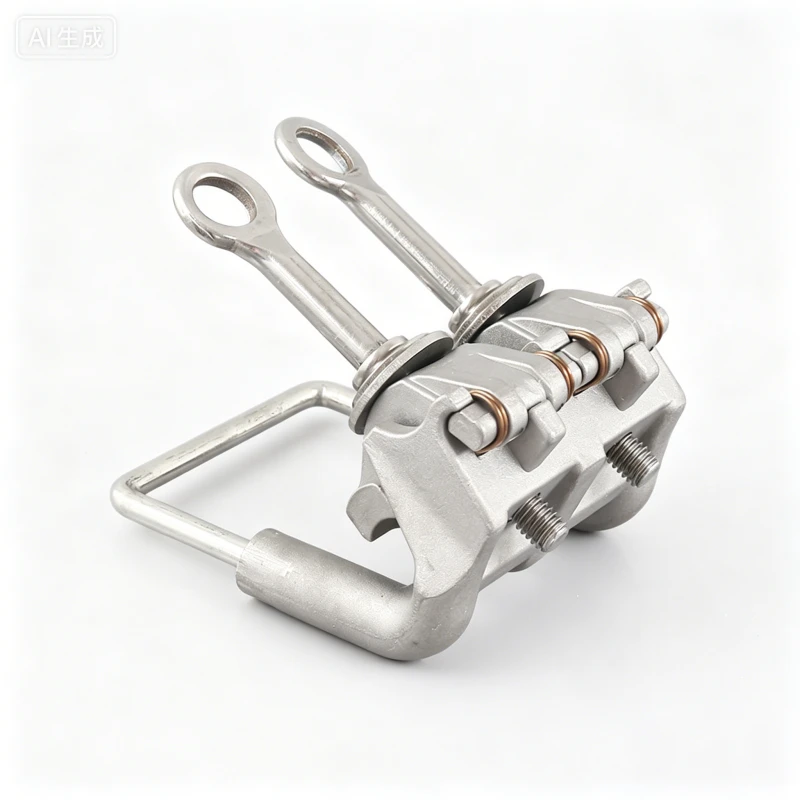

ESC-500 Horseshoe Clip

ESC-500 Horseshoe Clip (Stirrup Clamp) is a heavy-duty, spring-loaded aluminum alloy connector designed for 10kV live working (hot line) on overhead distribution lines. It enables fast, safe branch tapping, grounding, and testing without power shutdown. The horseshoe/stirrup shape ensures stable hanging and easy installation with a hot stick.

Key Features

• ✅ Live Working Ready: Install/remove under 10kV energized lines; no outage required

• ✅ Spring-Loaded Design: Self-holds on conductor during installation; supports own weight

• ✅ Horseshoe/Stirrup Shape: Stable hanging, easy alignment, low contact resistance

• ✅ Dual Function: Works as tap clamp, grounding ring, or testing ring

• ✅ High-Grade Materials: Aluminum alloy body, tin-plated copper stirrups, stainless steel eye bolts

• ✅ Wide Conductor Range: For aluminum/ACSR overhead wires

• ✅ Hot Stick Compatible: Install with standard insulated operating rod

• ✅ Reusable & Durable: Bolted design for repeated use; anti-corrosion finish

Technical Specifications

• Model: ESC-500
• Material:
• Body: High-strength aluminum alloy (6061-T6)
• Stirrups: Copper rod, tin-plated
• Eye bolts: Stainless steel
• Spring: Spring steel
• Voltage Rating: 10kV (medium voltage)
• Conductor Range:
• Aluminum strand: φ9.27–18 mm
• ACSR: φ8.25–17.6 mm
• Working Temperature: -40°C to 125°C
• Standard: GB/T 2314, DL/T 759, IEC 61238
• Installation: Hot stick (insulated operating rod)
• Weight: ~0.9 kg
• Finish: Natural aluminum tin-plated (anti-corrosion)

Applications

• 10kV overhead line live branch tapping

• Distribution network hot line maintenance

• Grounding ring and testing ring for live lines

• Jumper connection for pole-mounted transformers and switchgear

• Temporary power takeoff and emergency repairs

 Product Specifications

• Product Name: ESC-500 Horseshoe Clip / Stirrup Clamp

• Model: ESC-500

• Material: Aluminum Alloy Body, Tin-Plated Copper Stirrups

• Voltage: 10kV (Live Working)

• Conductor Range: φ9.27–18 mm (Aluminum); φ8.25–17.6 mm (ACSR)

• Standard: GB/T 2314, DL/T 759

• Feature: Spring-loaded, Hot stick install, No power outage

• Application: Overhead Line, Distribution Network, Grounding & Testing
