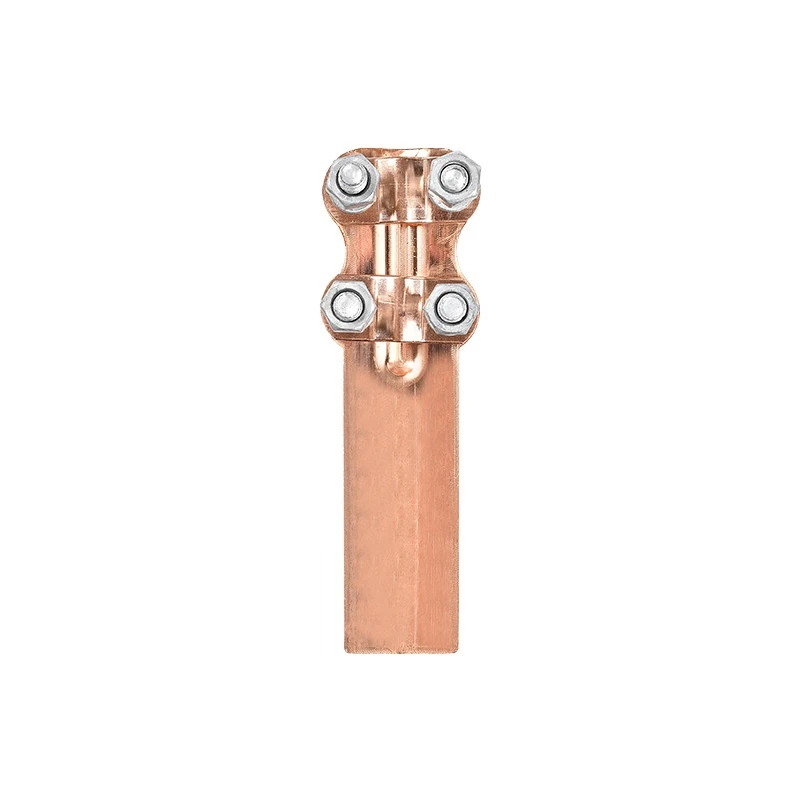

ST Device Wire Clamp

ST Series Bolted Copper Equipment Clamps are heavy-duty T2 copper terminal connectors designed for secure, high-conductivity connections between power cables and electrical equipment (transformers, switchgear, breakers) in substations and industrial systems. Featuring bolted compression, precision machining, and optional tin-plating, they ensure low resistance, reliable contact, and long-term durability for LV/MV power connections.

Key Features

• ✅ High-Grade T2 Copper: ≥99.9% pure copper, excellent conductivity, low contact resistance

• ✅ Bolted Compression Design: 2–4 bolt configuration for uniform pressure, strong grip

• ✅ Optional Tin-Plating: Anti-oxidation, anti-corrosion, easy soldering (optional)

• ✅ Precision Machining: Smooth surface, accurate dimensions, perfect fit

• ✅ High Mechanical Strength: Withstands vibration and thermal cycling

• ✅ Wide Size Range: 35–400 mm² for copper cables (stranded, solid)

• ✅ Standard Angles: 0° (A), 30° (B), 90° (C) for flexible installation

Technical Specifications

• Material: T2 Pure Copper (C11000)

• Plating: Bare Copper / Tin-Plated (optional)

• Voltage Rating: ≤ 35kV (Medium Voltage)

• Temperature Range: -40°C to 125°C

• Standard: GB/T 14315, IEC 61238, DL/T 759

• Conductor Type: Copper stranded, solid, compacted cables

• Installation: Bolted connection (no crimping needed)

Applications

• Transformer, circuit breaker, disconnect switch terminals

• Substation busbar connections & equipment terminations

• LV/MV switchgear, distribution panels, control cabinets

• Industrial power plants, renewable energy systems

• High-current equipment connections in harsh environments

 Product Specifications

• Product Name: ST Bolted Copper Equipment Wire Clamp / T2 Copper Terminal Connector

• Model: ST-1, ST-2, ST-3, ST-4, ST-5, ST-6, ST-7

• Material: T2 Pure Copper (C11000)

• Plating: Bare Copper / Tin-Plated

• Conductor Range: 35–400 mm² (Copper Cables)

• Voltage Rating: ≤ 35kV

• Standard: GB/T 14315, IEC 61238

• Angle: 0°, 30°, 90°

• Application: Transformer, Switchgear, Substation, Power Distribution
