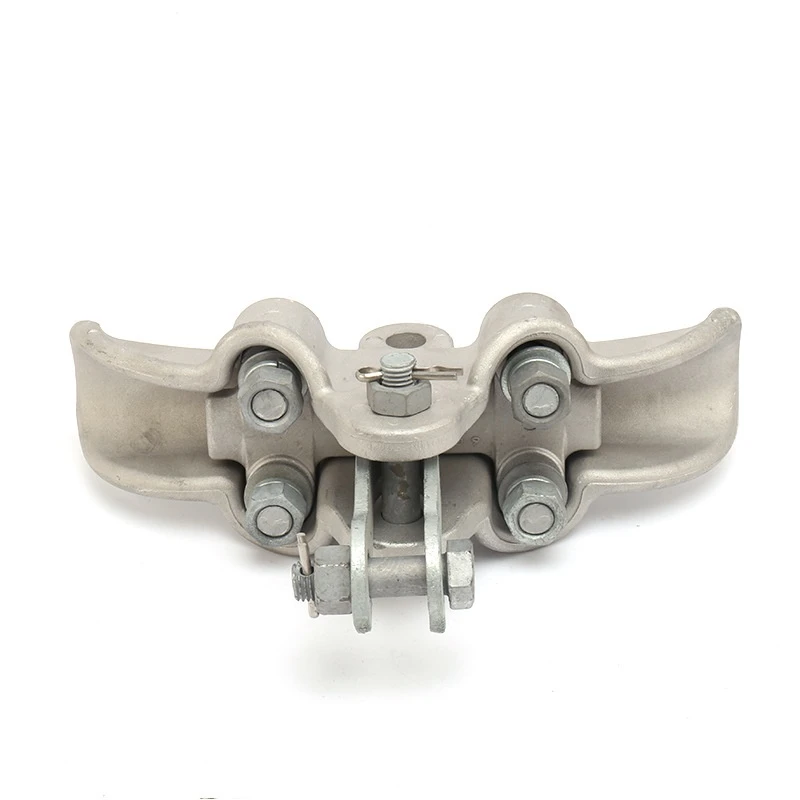

XGH Suspension Clamp

XGH Suspension Clamp – High-Strength Aluminum Alloy Overhead Line Suspension Clamp

XGH series suspension clamps are heavy-duty, energy-saving overhead line fittings designed for suspending conductors and lightning wires on insulator strings or towers in power distribution and transmission networks (up to 220KV). Ideal for long-span, high-mechanical-stress outdoor applications.

Key Features

• ✅ High-Strength Aluminum Alloy: Low-pressure cast body, smooth surface, no hysteresis loss, energy-saving, long service life ≥20 years。

• ✅ 40kN Rated Breaking Load: Robust grip for long-span lines, excellent vibration resistance。

• ✅ Wide Cable Range: Fits conductor diameters 1–28mm(including wrapped materials)。

• ✅ Corrosion & Weather Resistant: Hot-dip galvanized bolts (≥6.8 grade); aluminum body resists rust in coastal/humid areas。

• ✅ Cable-Safe Design: Optimized curvature (R ≥8×conductor diameter) prevents jacket damage。

• ✅ Easy Installation: Bolted design, no special tools required; allows ≥25° suspension angle。

• ✅ IEC 61284 Compliant: Meets international power fitting standards。

Applications

• Overhead power transmission lines (≤220KV)

• Suspending conductors on insulator strings/towers

• Lightning wire suspension on transmission towers

• Long-span distribution lines

• Power utility & substation projects

Material

• Body/Keeper: High-strength aluminum alloy

• Bolts/Nuts: Hot-dip galvanized steel (6.8 grade)

• Cotter Pin: Stainless steel

Standards & Certifications

• IEC 61284

• CE, RoHS, ISO 9001

 Meta Title / Meta Description / Tags

XGH Suspension Clamp | 40kN Aluminum Alloy Overhead Line Clamp

High-quality XGH suspension clamps for overhead power lines. 40kN strength, fits 5.1–28mm conductors, corrosion-resistant aluminum alloy for 220KV networks. Bulk pricing available.

Tags（Keywords）

XGH suspension clamp, aluminum alloy suspension clamp, overhead power line clamp, conductor suspension clamp, lightning wire clamp, 40kN suspension clamp, 220KV line fitting, power transmission clamp, tower suspension clamp, IEC 61284 clamp

Shipping & Package

• Unit Weight: 1.0–2.2 kg/pc

• Carton Size: 45×35×25 cm / 50 pcs

• HS Code: 8535900090

• Origin: China
